Speeds and Feeds
Compute
APU
6 nm AMD APU
CPU: Zen 2 4c/8t, 2.4-3.5GHz (up to 448 GFlops FP32)
GPU: 8 RDNA 2 CUs, 1.6GHz (1.6 TFlops FP32)
APU power: 4-15W
CPU: Zen 2 4c/8t, 2.4-3.5GHz (up to 448 GFlops FP32)
GPU: 8 RDNA 2 CUs, 1.6GHz (1.6 TFlops FP32)
APU power: 4-15W
RAM
16 GB LPDDR5 on-board RAM (6400 MT/s quad 32-bit channels)
Storage
Steam Deck 512GB NVMe SSD
Steam Deck 1TB NVMe SSD
Both include high-speed microSD card slot
Steam Deck 1TB NVMe SSD
Both include high-speed microSD card slot

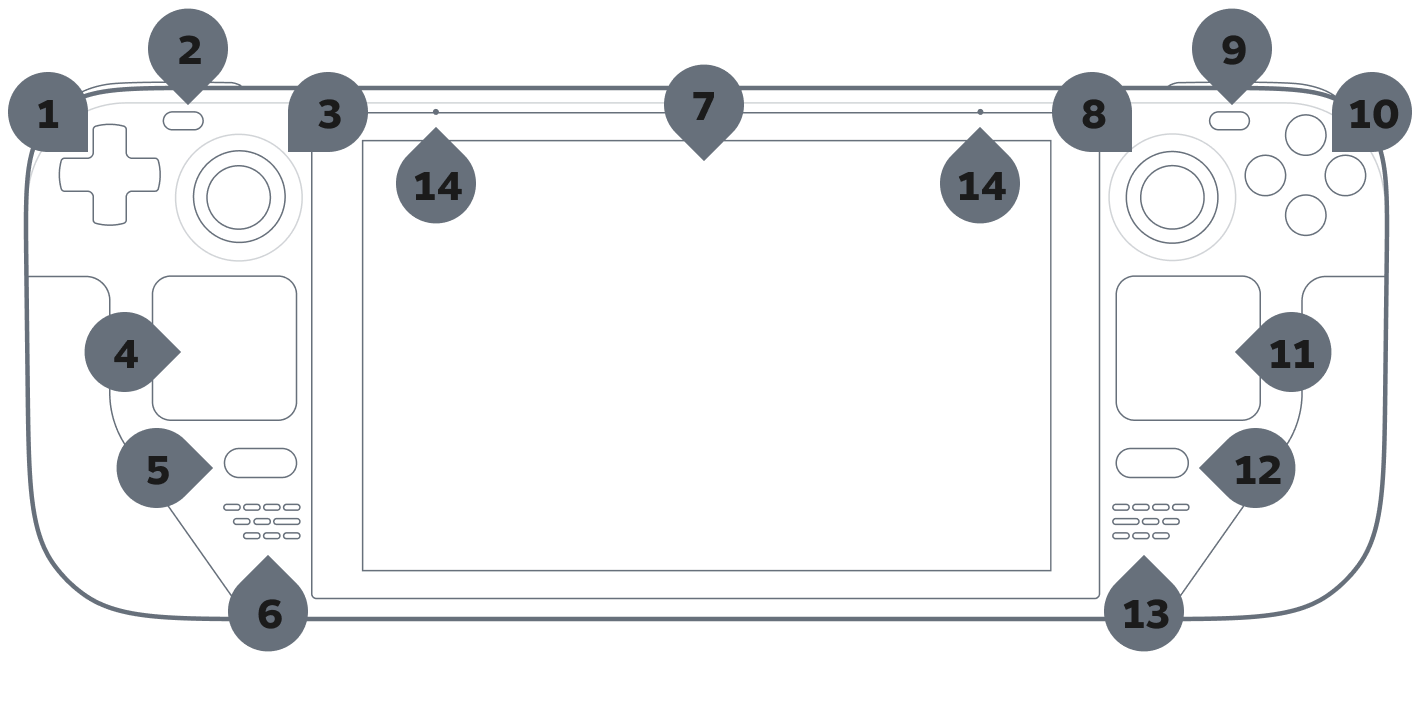

Controls and Input
Gamepad controls
A B X Y buttons
D-pad
L & R analog triggers
L & R bumpers
View & Menu buttons
4 x assignable grip buttons
D-pad
L & R analog triggers
L & R bumpers
View & Menu buttons
4 x assignable grip buttons
Thumbsticks
2 x full-size analog sticks with capacitive touch
Haptics
HD haptics
Trackpads
2 x 32.5mm square trackpads with haptic feedback
Pressure-sensitivity for configurable click strength
Pressure-sensitivity for configurable click strength
Gyro
6-Axis IMU
Display
Resolution
1280 x 800 x RGB
Type
HDR OLED
Display size
7.4” diagonal
Maximum Brightness
1,000 nits peak brightness (HDR)
600 nits (SDR)
600 nits (SDR)
Contrast ratio
> 1,000,000 : 1
Color gamut
110% P3
Refresh rate
up to 90Hz
Response time
<0.1 ms
Touch enabled
High performance touch
Sensors
Light
Dual ambient light sensor ALS
Connectivity
Bluetooth
Bluetooth 5.3 (support for controllers, accessories and audio)
Dedicated bluetooth antenna
Dedicated bluetooth antenna
Wi-Fi
Tri-band Wi-Fi 6E radio, 2.4GHz, 5GHz, and 6GHz 2 x 2 MIMO, IEEE 802.11a/b/g/n/ac/ax
Audio
Channels
Stereo with embedded DSP for an immersive listening experience
Microphones
Dual microphone array
Headphone / mic jack
3.5mm stereo headphone / headset jack
Digital
Multichannel audio via DisplayPort over USB-C, standard USB-C, or Bluetooth 5.3
Power
Input
PD3.0 Type C power supply, 45W
2.5m cable
2.5m cable
Battery
50Whr battery. 3-12 hours of gameplay
Expansion
microSD
UHS-I supports SD, SDXC and SDHC
External connectivity for
controllers & displays
controllers & displays
Display port over Type C; up to 8K @60Hz or 4K @120Hz, USB3 gen 2
Size and Weight
Size
298mm x 117mm x 49mm
Weight
Approx. 640 grams
Software
Operating System
SteamOS 3 (Arch-based)
Desktop
KDE Plasma
Get your hands on Deck!
Steam Deck is shipping now.
Product specifications are subject to change.
